  • Tepache Guide (Elimiate the need for Project Stellar when using XboxHD+

    Tepache
    Contributors - ModzvilleUSA, NeMeSiS, MakeMHz, Xbox-Scene
    Welcome to the '''Tepache Project''' – your guide to restoring full standalone functionality to the Stellar HD+ using an affordable $1.50 devboard. Follow these simple steps to get started:



    == Requirements ==














    Before you begin, ensure you have the following items:
    == Installation Steps ==

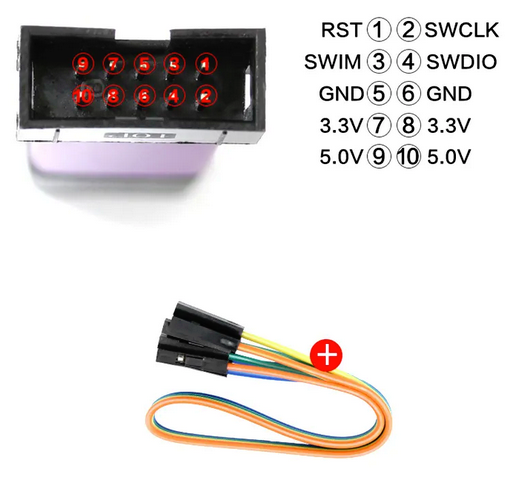

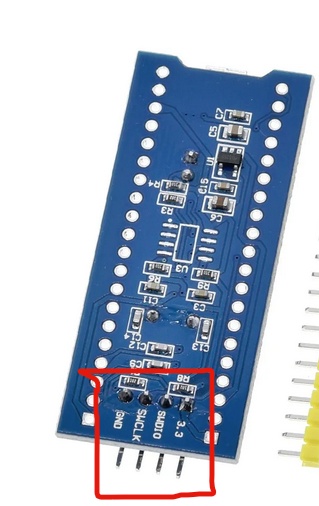

    1) Hook the ST-Link Programmer up to the devboard by matching the programming pins on the dev board with the corrosponding pins on the ST-Link programmer (Fig 1.1 & Fig 1.2)

    Click image for larger version Name: image.png Views: 0 Size: 166.1 KB ID: 1503​Fig 1.1
    Click image for larger version Name: image.png Views: 0 Size: 184.6 KB ID: 1504​Fig 1.2


    2) Flash the devboard with the HD+ firmware using an ST-Link programmer and ST32CubeProgrammer

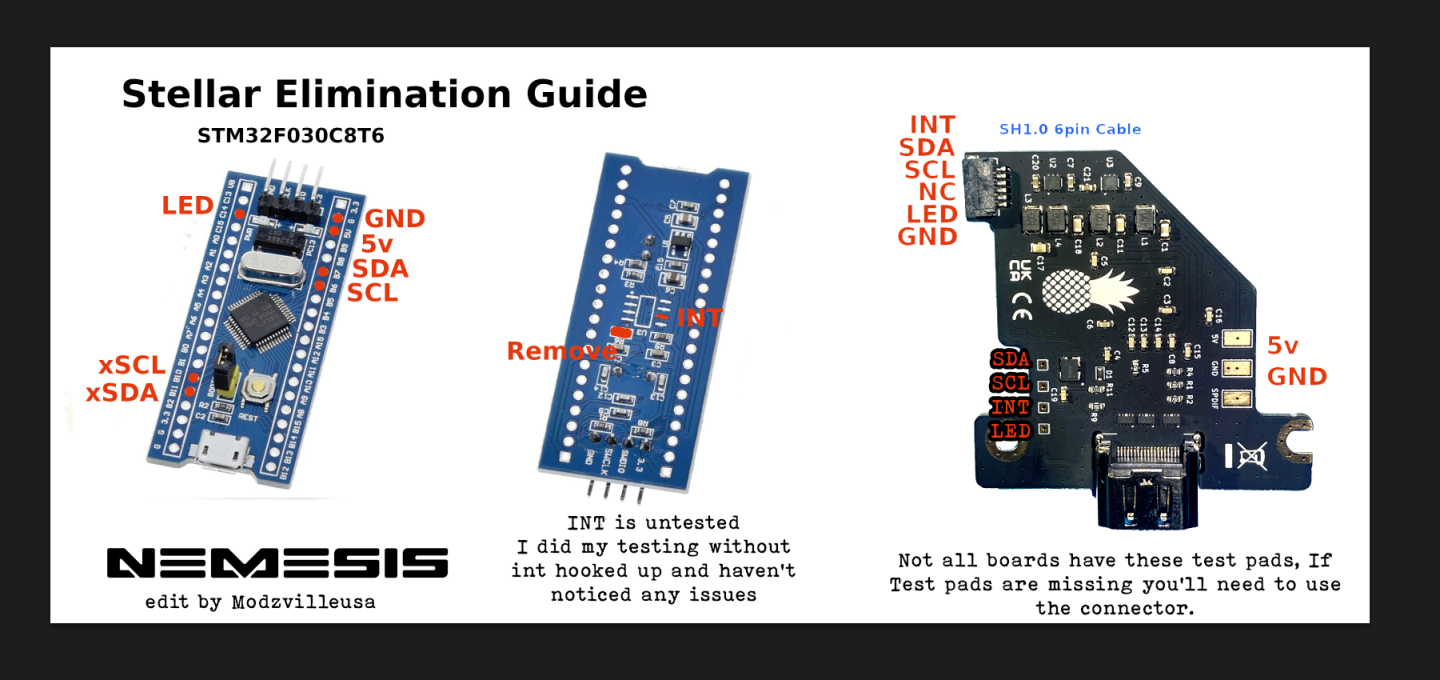

    3) Wire it up to the HD+. (see image below)

    4) Enjoy the restored functionality of your Stellar HD+.
    == Project Details ==












    The installation process can be optimized and customized for various needs without the need to purchase the Stellar main chip or Legacy addon board. This project is designed as a temporary or test installation, suitable for homebrew enthusiasts.


    == Links ==
    ​
    Feel free to contribute, improve, and adapt this project to your requirements. Share your experiences and enhancements with the community.

    Happy hacking!


    == Credits ==











    [Modzville] for his [guide]```​


    ​Click image for larger version Name: image.png Views: 18 Size: 567.7 KB ID: 1502​
